CHARACTERISTICS

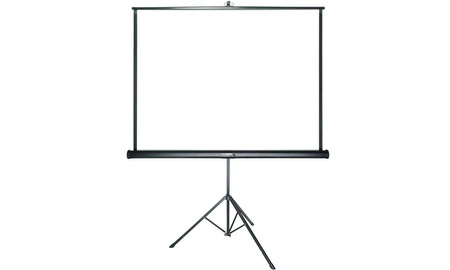

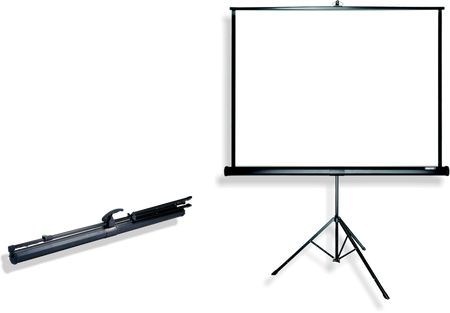

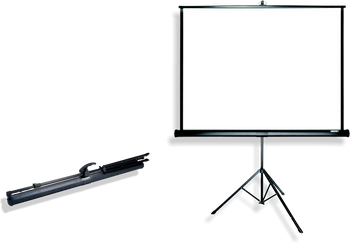

Portable screen, set up on a tripod from the economic line
Available formats:
- 1:1
- 4:3
Widths: from 152 to 203 cm

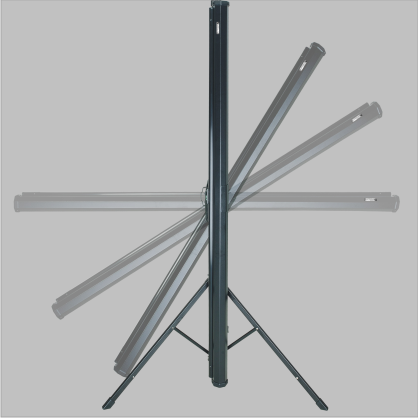

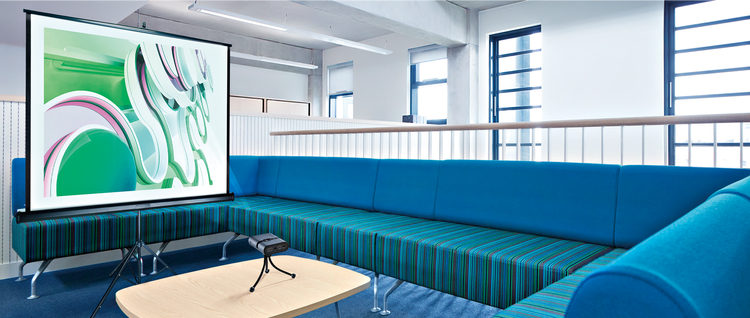

- Portable screen, set up on a tripod,

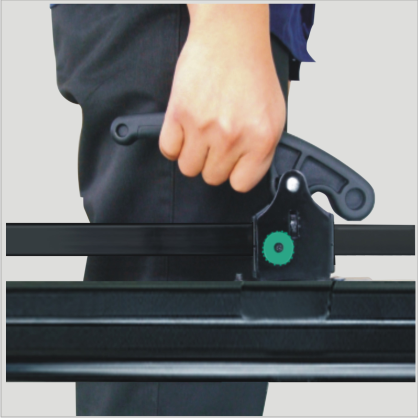

- Rubberized, comfortable transport handle,
- Black frame of the projection field on standard equipment,

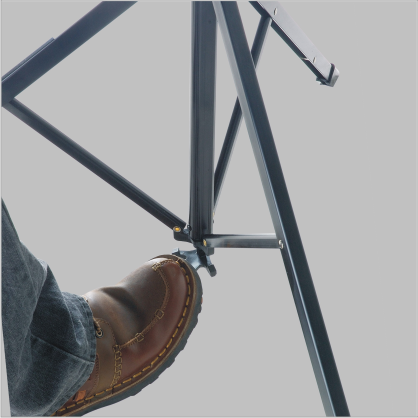

- Compact design on a tripod,

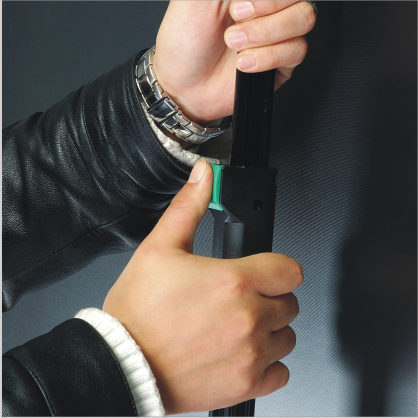

- Adjustable base allows you to adjust the height to your presentation needs,

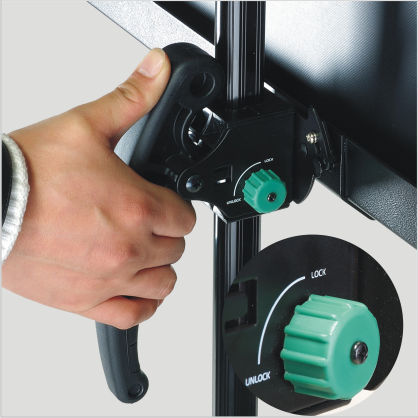

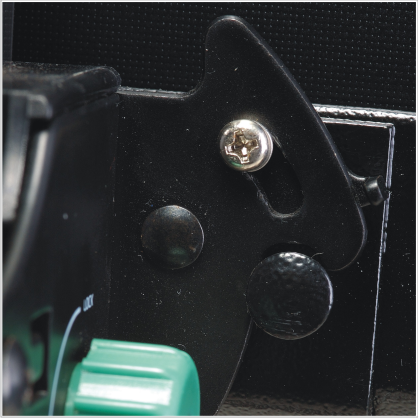

- Special handle with locking function allows you to move the screen.
- Projection material:
- Matt White



TECHNICAL SPECIFICATIONS

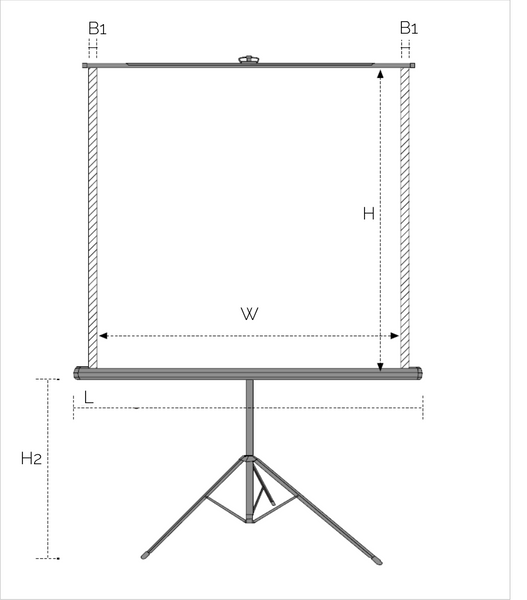

| Format | Screen diagonal (active field) | Image area (mm) | Frame parameters (mm) | Cassette (mm) | H2 (mm) | A (mm) | Material |
|---|---|---|---|---|---|---|---|
| W x H | B1 | L | |||||
| 1:1 | 85″ | 1520 x 1520 | 30 | 1705 | 800 | 2550 | MW |
| 96″ | 1720 x 1720 | 30 | 1896 | 800 | 2550 | ||
| 4:3 | 100″ | 2030 x 1520 | 40 | 2225 | 800 | 2550 |
Materials
| Material | Reflectance | Reflection angle | Weight (kg/m2) | Thickness (mm) | Construction |
|---|---|---|---|---|---|
| MW | 1 | 160º | 0.515 | 0.37 | PVC/Fiberglass, 4-layer, black back |
Brand
Symbol
Suprema LEO
Producer code
1:1 / 85″ / 1520 x 1520 / MW5904870730836
1:1 / 96″ / 1720 x 1720 / MW5904870730843
4:3 / 100″ / 2030 x 1520 / MW5904870730850
Series
Rodzaj ekranu
Rozwijany ręcznie
Rodzaj projekcji
Przedni
Montaż
Stojący
Proporcje obrazu
4:3
1:1
Wymiary obrazu
203 x 152 cm
152 x 152 cm
172 x 172 cm
Współczynnik odbicia ( gain )
1,0
Kąt widzenia
160 stopni
Reprodukcja kolorów
98 %
Grubość ekranu
3,7 mm
Waga ekranu (kg/m2)
0,515
Waga netto
10,9 kg
Waga brutto
12,0 kg
Packaging dimensions
244 x 21 x 12 cm
